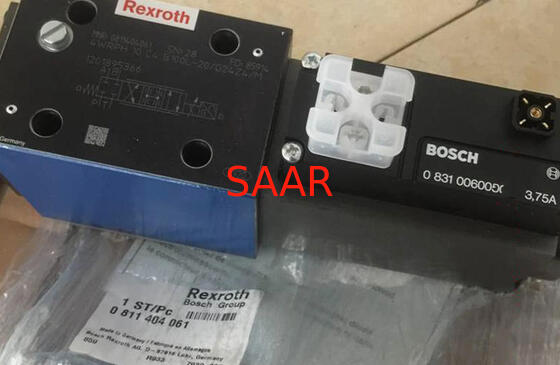

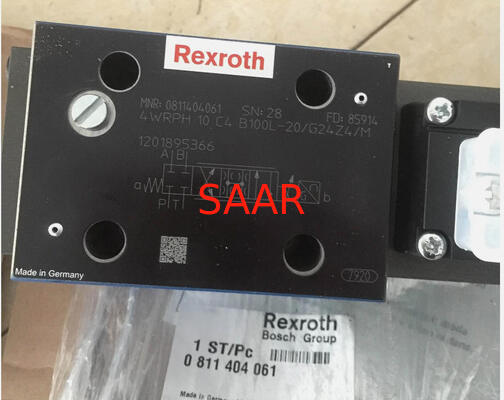

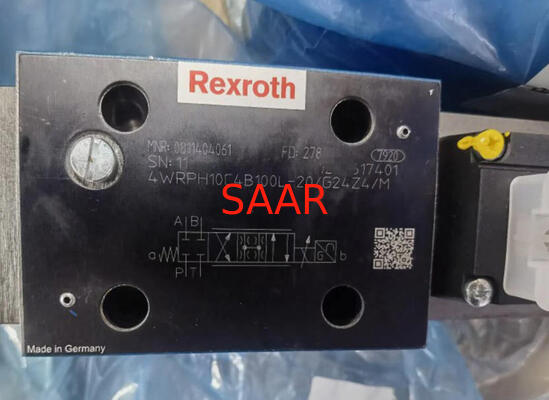

Name: 0811404061 4WRPH10C4B100L-20/G24Z4/M 4WRPH10C4B100L-2X/G24Z4/M PROPORTIONAL DIRECTIONAL VALVE
Brand: Saar HK Electronic Limited
SKU: 0811404061 4WRPH10C4B100L-20/G24Z4/M 4WRPH10C4B100L-2X/G24Z4/M
Price: 950.00 USD
Availability: InStock

Inicio Productos Válvulas hidráulicas Rexroth

0811404061 4WRPH10C4B100L-20/G24Z4/M 4WRPH10C4B100L-2X/G24Z4/M PROPORTIONAL DIRECTIONAL VALVE

Datos del producto:

Lugar de origen:	Alemania
Nombre de la marca:	Rexroth
Número de modelo:	0811404061 4WRPH10C4B100L-20/G24Z4/M 4WRPH10C4B100L-2X/G24Z4/M

Pago y Envío Términos:

Cantidad de orden mínima:	1
Precio:	On request
Detalles de empaquetado:	Caja de papel estándar
Tiempo de entrega:	7-10 días
Condiciones de pago:	T/T, Unión Occidental
Capacidad de la fuente:	100pcs por mes

Contacto

Descripción detallada del producto

MNR:

0811404061

Modelo:

4WRPH10C4B100L-20/G24Z4/M 4WRPH10C4B100L-2X/G24Z4/M

Resaltar:

Rexroth proportional directional valve

hydraulic proportional valve with warranty

4WRPH10 directional control valve

4WRPH6 and 4WRPH10 Series PROPORTIONAL DIRECTIONAL VALVE
4/4 directional control valves, direct operated, with electrical position feedbackand integrated electronics (OBE)

4WRPH Size 6
Component series 2X
Maximum operating pressure 315 bar
Nominal flow 2 … 40 l/min

4WRPH Size 10
Component series 2X
Maximum operating pressure 315 bar
Nominal flow 50 … 100 l/min

Features
4/4 directional design
With control spool and sleeve in servo quality
Operated on one side, 4/4 fail-safe position in switched-off condition
Electric position feedback and integrated electronics (OBE), calibrated in the factory
Electrical connection 6P+PE; signal input differential amplifier with interface "A1" ±10 V or interface "F1" 4 ... 20 mA (Rsh = 200 Ω)
Use for electro-hydraulic controls in production and test systems

Type code:

01	02	03	04	05	06	07	08	09		10		11	12		13	14	15
4	WRP	E	H	6/10		B			‒	2X	/	G24	K0	/		M	*

01	4 main ports	4
02	High-response directional valve, direct operated	WRP
03
04	Control spool/sleeve	H
05	Size 10	10
06	Symbols; for the possible version, see "Symbols/Circuit diagrams"
Installation side of the inductive position transducer
07	Valve side B (standard) (see "Symbols/Circuit diagrams")	B
Rated flow at 70 bar valve pressure differential (35 bar/control edge)
08	50 l/min	50
	100 l/min	100
Flow characteristic
09	Linear	L
09	Inflected characteristic curve	P
10	Component series 20 ... 29 (20 ... 29: unchanged installation and connection dimensions) - Size 6	2X
Supply voltage of the control electronics
11	Direct voltage 24 V	G24
Electrical connection
12	Without mating connector; connector DIN 43563-AM6 Mating connectors, separate order	K0
Control electronics interface
13	Command value input ±10 V	A1
13	Command value input 4 ... 20 mA	F1
Seal material
14	NBR seals, suitable for mineral oil HL and HLP according to DIN 51524	M
15	Further details in the plain text	*

SAAR specialized in pumps, motors, valves, bearings, couplings, gearbox, engine spare parts, filter elements, fittings, connectors, electronic components and accessories, mobile equiupment spare parts.

Rexroth 4WRPH10 PROPORTIONAL DIRECTIONAL VALVE Model List:

0811404058	4WRPH10C3B50L-2X/G24Z4/M
0811404059	4WRPH10C3B100L-2X/G24Z4/M
0811404077	4WRPH10C5B100L-2X/G24Z4/M
0811404062	4WRPH10C3B50P-2X/G24Z4/M
0811404063	4WRPH10C3B100P-2X/G24Z4/M
0811404079	4WRPH10C5B100P-2X/G24Z4/M
0811404060	4WRPH10C4B50L-2X/G24Z4/M
0811404061	4WRPH10C4B100L-2X/G24Z4/M
0811404076	4WRPH10C1B100L-2X/G24Z4/M
0811404064	4WRPH10C4B50P-2X/G24Z4/M
0811404065	4WRPH10C4B100P-2X/G24Z4/M
0811404067	4WRPH10C1B50P-2X/G24Z4/M
0811404078	4WRPH10C1B100P-2X/G24Z4/M
0811404901	4WRPH10C1B100L-2X/G24K0/M-750
0811404069	4WRPH10C4B100L-2X/G24K0/M-750
0811404076	4WRPH10C1B100L-2X/G24Z4/M
0811404089	4WRPH10C1B100P-2X/G24K0/M-750
0811404078	4WRPH10C1B100P-2X/G24Z4/M
0811404902	4WRPH10C3B100L-2X/G24K0/M-750
0811404059	4WRPH10C3B100L-2X/G24Z4/M
0811404063	4WRPH10C3B100P-2X/G24Z4/M
0811404058	4WRPH10C3B50L-2X/G24Z4/M
0811404062	4WRPH10C3B50P-2X/G24Z4/M
0811404061	4WRPH10C4B100L-2X/G24Z4/M
0811404088	4WRPH10C4B100P-2X/G24K0/M-750
0811404065	4WRPH10C4B100P-2X/G24Z4/M
0811404060	4WRPH10C4B50L-2X/G24Z4/M
